The permission status icons and notification log are located in the header of the virtual classroom. The black and white bell icon (to the right of the keypoints icon) on the header is the notification log. To the right of that and to the left of the drop-down menu with your name and avatar you can see a group of four icons called the permission status icons:

Permission status icons in the Virtual Classroom
Permission status icons



Hovering over them reveals the permissions you currently have for the various functions of the room. There are four distinct categories: Whiteboard permissions, Chat permissions, Video permissions, Audio/Microphone permissions. These icons allow you to review the permissions you currently have for the room. Additionally, clicking on the audio/microphone permission icons allows you to control the volume of the audio you hear from the room and the microphone you use to speak in the room, respectively.

Below is a breakdown of how this looks for the different categories (icons):

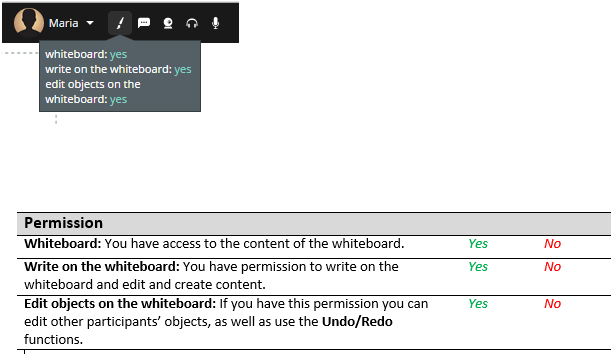

Whiteboard permissions icon

White board permission icon in the Virtual Classroom
White board permission icon

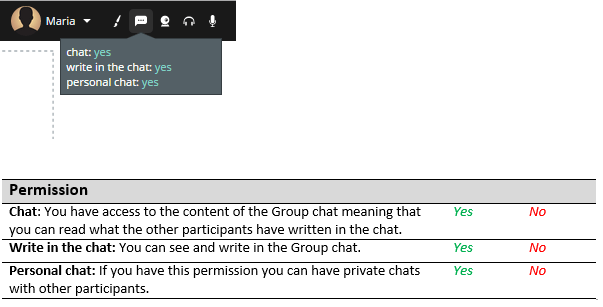

 Chat permissions icon

Chat permissions icon in the Virtual Classroom
Chat permissions icon

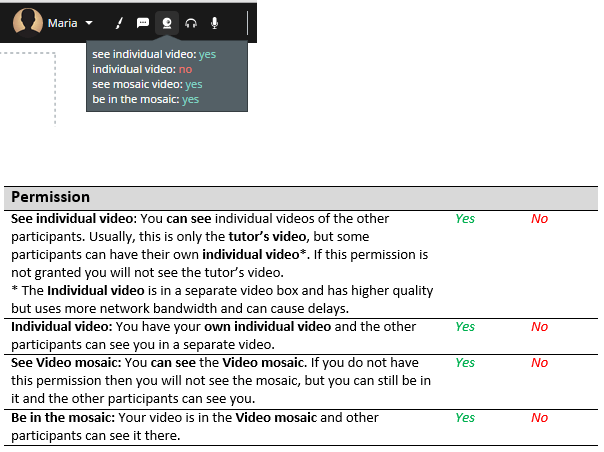

Permissions for Video

Video Permissions icon in the Virtual Classroom
Video Permissions

Audio/microphone permission icons & controls

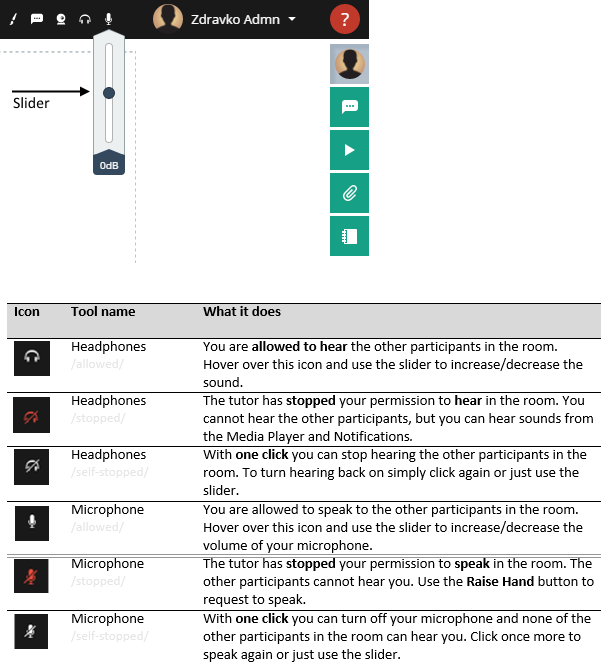

The audio/microphone permission icons function slightly differently from the ones above and hence the indicators are different as well. Every participant has control over his/her microphone and sound volumes (headphones) which they can adjust using the slider as shown in the screenshot below:

Due to the fact that the icons are functional, the indicators for your permissions lso look slightly different from the way they look for the other categories:

Audio/microphone permission icons & controls in the Virtual Classroom
Audio/microphone permission icon & controls

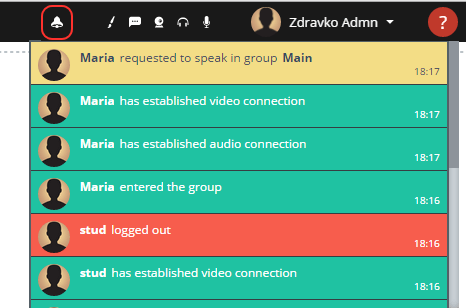

Notification log

All system messages and notifications can be found under the Bell button. Scroll down to see full list.

Notification log in the Virtual Classroom
Notification log

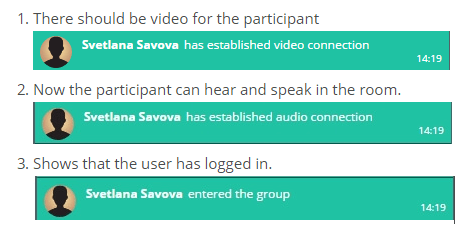

When a participant enters the room

There are three notification messages for this action:

When a participants enters the Virtual Classroom
When a participant enters the room

When a participant logs out

This is the message shown after a participant clicks on the Log out button in the top right-hand corner and has officially left the room: “Participant… logged out“.

Notification in the Virtual Classroom when a participant logs out
Notification when a participant logs out

When a participant closes the browser or loses internet connection

This is the message shown after a participant loses their internet connection and refreshes or closes the browser: “Participant… disconnected“.

Notification in the Virtual Classroom when a participant closes the browser or loses internet connection
Notification when a participant closes the browser or loses internet connection

When a participant connects after refresh or lost internet connection

This is the message shown after a participant loses and regains their internet connection, refreshes the browser, or closes and reopens it: “Participant… connected“.

Notification in the Virtual Classroom when a participant connects after refresh or lost internet connection
Notification when a participant connects after refresh or lost internet connection

When a participant Raises Hand

All participants receive a sound indication and a notification that a participant has requested to speak (clicked the Raise Hand button). The tutor has the ability to mute the sound notification. The notification shows in which group a participant has requested to speak.

Notification in the Virtual Classroom when a participant raises hand
Notification when a participant raises hand

When a participant switches off his/her camera

This is the message when a participant switches his/her camera off: “Participant… video connection interrupted“.

Notification when a in the Virtual Classroom when participant switches off his/her camera
Notification when a participant switches off his/her camera

When a participant first logs in with his/her camera switched on

This is the message when a participant first logs into the room with his/her camera switched on: “Participant… has established a video connection“.

Notification in the Virtual Classroom when participant first logs in with his/her camera switched on
Notification when participant first logs in with his/her camera switched on

When a participant switches on his/her camera again

This is the message when a participant restarts his/her camera: “Participant… turned on the camera“.

Notification in the Virtual Classroom when a participant switches on his/her camera again
Notification when a participant switches on his/her camera again

When a participant switches off his/her microphone

This is the message when a participant switches off his/her microphone: “Participant… audio connection interrupted“

Notification in the Virtual Classroom when a participant switches off his/her microphone
Notification when a participant switches off his/her microphone

When a participant first logs in with his/her microphone switched on

The message when a participant first logs into the room with his/her microphone switched on: “Participant… has established an audio connection“.

When a participant switches on his/her microphone again

This is the message when a participant restarts his/her microphone: “Participant… turned on the microphone“.

Notification in the Virtual Classroom when a participant switches on his/her microphone again
Notification when a participant switches on his/her microphone again













.
